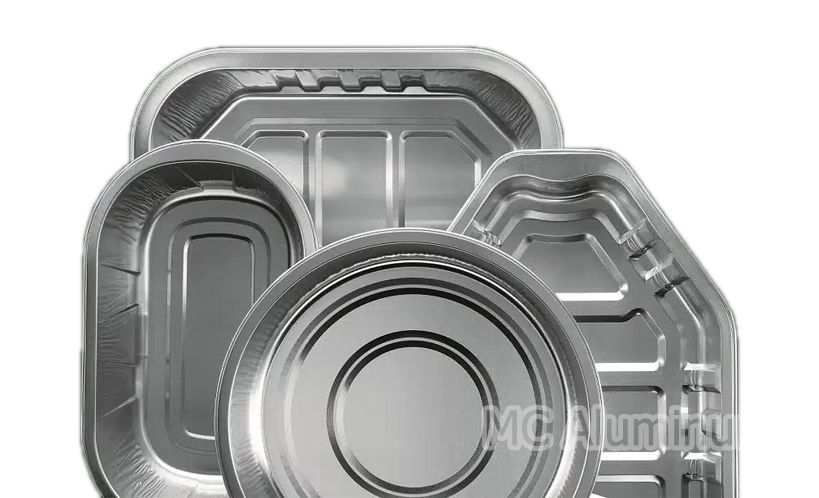

Semi-rigid packaging includes trays and containers made from thin aluminum strips. MC Aluminum is simply produced by deep drawing using a standard deep drawing press. Container foil is heat-resistant, retort-resistant, safe and hygienic, and available in a variety of colors. It is mainly used for portion packaging of frozen food and ready-to-eat food in catering companies and aircraft catering, as well as jam, honey, milk and sausage products.
Chemical Composition: | |||||||||
Alloy | Si | Fe | Cu | Mn | Mg | Cr | Ti | Zn | AL |
3003 | Max. 0.60 | Max. 0.70 | 0.05 0.20 | 1.0 1.5 | Max. 0.1 | - | Max. 0.05 | Max. 0.10 | Min Remainder |
8011 | 0.5-0.9 | 0.6-1.0 | 0.1 | 0.2 | 0.05 | 0.05 | 0.08 | 0.1 | Min Remainder |
Technical Parameters: | |
Alloy | 8011,3003 |
Temper | O,H22, H24, H26, H18 |
Thickness | 0.038-0.200 |
Thickness tolerance: | Single measurement ± 8% Mean Measurement ± 4% |
Width Tolerance | ± 1 mm |
Lubrication | According to customer order |
Surface | Both side bright |
Telescope | Max. 3 mm |
Type of Core | Steel /Aluminium |
Core ID | 152 mm/76 mm |
Reel OD | Max. 800 mm |
Splice | Maximum 1 joint, 80 % material joint free |
Identification | Each reel is identified with a ticket having Product name, reel number, specification. |
Test Certificate(COA) | Test certificate incorporates (a) Thickness (b) Width (c) UTS (d) Elongation and any other information sought by the customer can also be given. |
Total heavy metals, (Pb+Cr+Cd+Hg) are below 100 PPM |
Mechanical Properties: | ||
Thickness(mm) | Tensile strength(MPa) | Elongation % |
0.038-0.090 | 135 - 185 | 7 to 13 |
0.091 – 0.140 | 135 - 185 | 8 to 12 |
0.141-0.200 | 135 - 185 | 9 to 12 |
