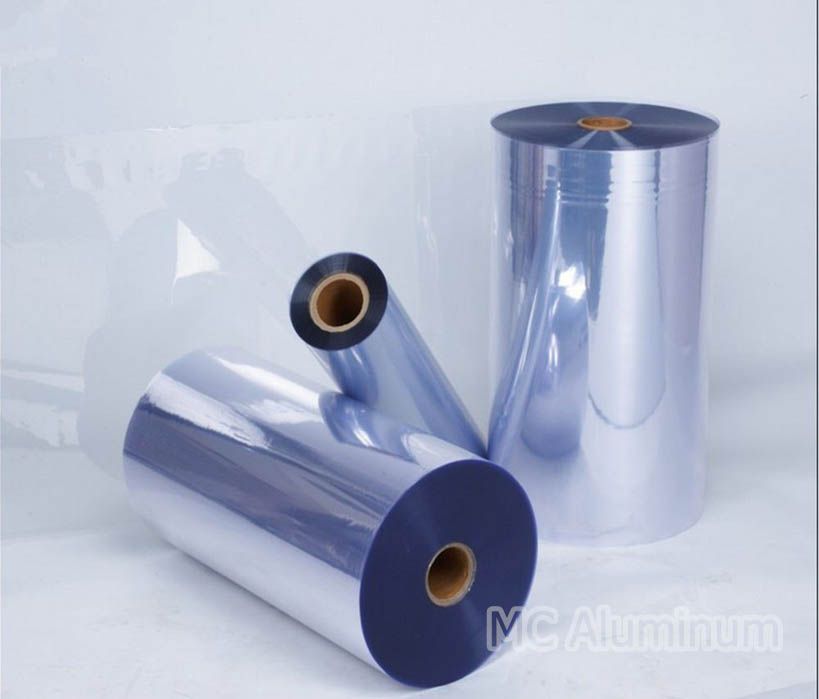

Rigid PVC/PVDC film is a high-barrier material specifically designed for pharmaceutical packaging. It is widely used in blister packaging for capsules, tablets, and pills. This film consists of a rigid PVC base layer and a PVDC (polyvinylidene chloride) coating, combining the excellent mechanical properties of PVC with the superior barrier performance of PVDC, providing stable and secure protection for pharmaceuticals.
Product Structure
This packaging film consists of two primary layers:
(1)PVC (Polyvinyl Chloride) Layer: Serves as the base material, offering excellent rigidity, impact resistance, and transparency, facilitating product display and storage.
(2)PVDC (Polyvinylidene Chloride) Coating: Enhances the barrier properties of the film, protecting pharmaceuticals from moisture, oxygen, and light exposure, thereby improving drug stability and shelf life.
Blister Packaging Product Specifications
| Product Name | PVC/PVDC Sheet |
| Thickness | 250 microns (customizable) |
| Barrier Levels | PVDC coating available in different weights as per requirements (25g/m², 40g/m², 60g/m², 90g/m², etc.) |
| Width | ≤1200mm (customizable) |
| Length | 200m/roll (for 250-micron thickness) |
| Color Options | Transparent, amber, white, etc. |
| ID | 76mm |
| OD | 300mm |
| Density | 1.37g/cm³ |
| Packaging | Double-layer black PE bags, plastic plugs, cartons, and pallets |
Features and Benefits of PVC/PVDC Composite Rigid Film for Capsule Packaging
1.High Barrier Properties – The PVDC-coated rigid PVC film offers excellent oxygen and moisture barrier capabilities, effectively protecting capsules from external environmental factors.
2.Superior Formability – The rigid PVC film base provides excellent processing performance, allowing easy thermoforming into various shapes and sizes.
3.Excellent Transparency – The PVC film offers high transparency, enabling consumers to clearly see the capsules inside.
4.Chemical Stability – Both PVC and PVDC exhibit strong chemical resistance, protecting against chemical erosion and ensuring product integrity.
Applications of PVC/PVDC Film

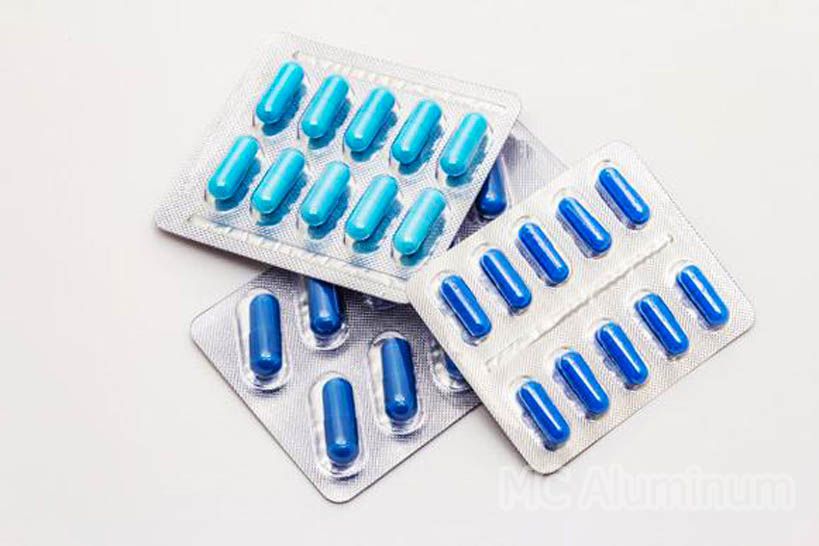

1.Pharmaceutical Packaging: Extensively used in blister packaging for capsules, tablets, and pills.
2.Nutritional & Health Supplement Packaging: Suitable for vitamins, dietary supplements, and other healthcare products.
3.Food Packaging: Can be used for food products requiring high-barrier protection, such as candy and chewing gum.
This PVC/PVDC film provides reliable, high-performance packaging solutions for pharmaceutical and healthcare industries, ensuring the safety, stability, and extended shelf life of packaged products.
