MC Aluminum specializes in the production of cold forming aluminum foil, which is widely used in the pharmaceutical industry. Alu-Alu foil is available in 45 micron and 50 micron thicknesses, effectively preventing moisture, microorganisms, light, oxygen, and other gases. This makes it the primary packaging material for tablets, capsules, and injectables.
Cold forming blister foil is specifically designed for highly sensitive pharmaceuticals and generic medicines that are extremely hygroscopic or photosensitive, and cannot be properly packaged with barrier plastic films. Its structure is an optimized combination of aluminum foil and polymer films, where the aluminum layer is enclosed between a heat-sealable polymer film inside and a formable film outside.
Alu-Alu Foil Compositions
| Raw Material | µ (Microns) | µ (Microns) | µ (Microns) |
| BOPA | 25 | 25 | 25 |
| Aluminum Foil | 45 | 50 | 60 |
| PVC Film | 60 | 60 | 60 |
4 Layer Composition
| Raw Material | µ (Microns) |
| PVC Film | 60 |
| BOPA | 25 |
| Aluminum Foil | 60 |
| PVC Film | 60 |
Aluminum-Aluminum Base Foil Printing
Alu-Alu foil printing uses high-precision gravure printing or screen printing technologies to ensure clear visibility of pharmaceutical information, instructions, and brand identity. At the same time, the inherent barrier properties of aluminum foil guarantee that medicines remain stable throughout their shelf life.
Specialized equipment and inks are required to ensure that the printed patterns remain intact and legible during subsequent forming and heat-sealing processes.
Alu-Alu Foil Product Information
| Foil Thickness, GSM & Tolerance | 20 µm - 54.20 GSM (±8%) 25 µm - 67.75 GSM (±8%) 30 µm - 81.30 GSM (±8%) |
| HSL Coating | 4-6 GSM or 6-8 GSM (customized) |
| Adhesion Strength with PVC/PVDC | ≤ 10 N (1000 g / 15 mm strip, sealed at 180°C, 0.5 sec dwell time, 3-4 Bar sealing pressure) |
| Pinholes | 20 µm: 70% rolls pinhole-free, rest ≤10 pinholes/m² 25 µm & 30 µm: 100% pinhole-free |
| Width | Unprinted: 45-925 mm (±1.0 mm) Printed: 45-610 mm (±1.0 mm) |
| Printing Options | 1.Up to 8 colors 2.Front & reverse registration 3.High-temperature resistant inks 4.UV inks available |
| Reel Winding | Unprinted: printing side outside, sealing side inside Printed: printing side outside, sealing side inside |
| Infrared Spectrum Consistency | 100% |
| Food Contact Safety | Complies with BFR XXII, FDA-175-300, EU 2002/72 & 2005/79 |
| Core Options | PVC / Paper / Aluminum, 76.2 mm ±0.5 mm |
| Reel OD Options | Printed foil: 250 mm ±10 mm Unprinted foil: 250/300/400/500 mm (±10 mm) |
| Identification | Each reel supplied with barcode, batch number, product details, manufacturing date |
| Packaging | Strong and secure to withstand transportation challenges |
| MOQ | 1-3 tons |
Why Choose Alu-Alu Base Foil
Excellent Barrier Properties: Effectively blocks oxygen, moisture, light, and odors, ensuring extended shelf life and product stability.
Premium Visual Impact: Transparent or opaque ink printing enhances branding with vibrant colors and patterns.
Formability & Durability: Easily shaped into various blister forms, resistant to puncture and abrasion for safe transportation and storage.
Sustainability: Thin design reduces material usage; improved recycling technologies increase recovery rates; use of recycled aluminum reduces environmental footprint.

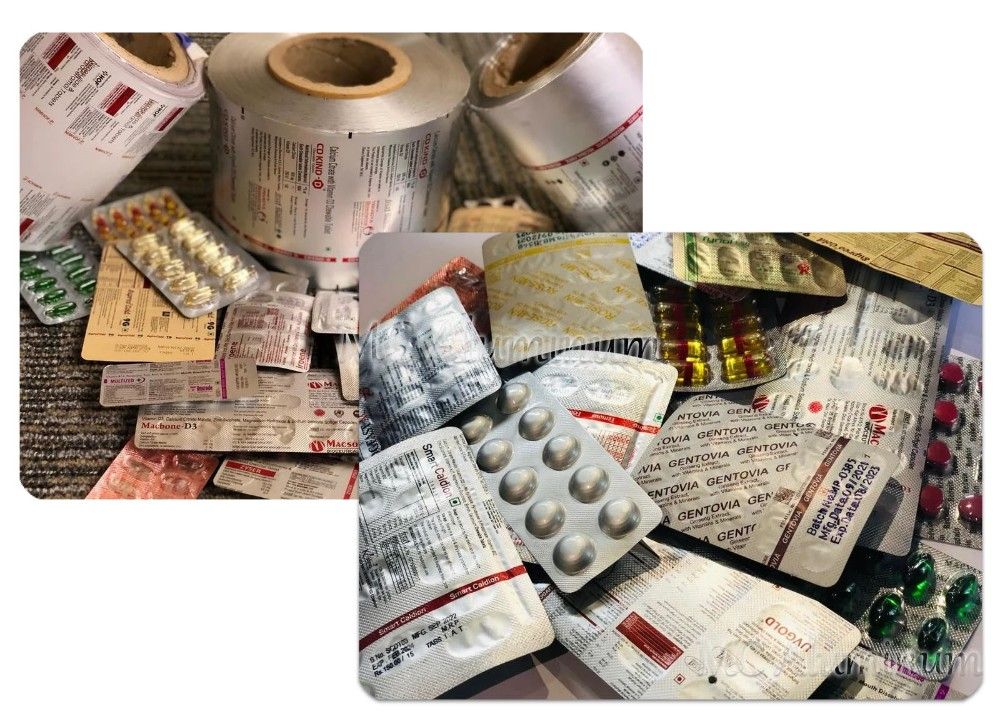

MC Aluminum’s Alu-Alu printed foil is widely used for blister packaging of tablets, capsules, and granules. It guarantees drug stability and safety while meeting strict GMP (Good Manufacturing Practice) standards. Our products are exported worldwide, with sample support and excellent after-sales service, ensuring you can purchase with confidence.
